Italian Style Stretchers
Recommended for
Conservators.
Design
Update of the 19th-century original.
Materials
Sugar pine.

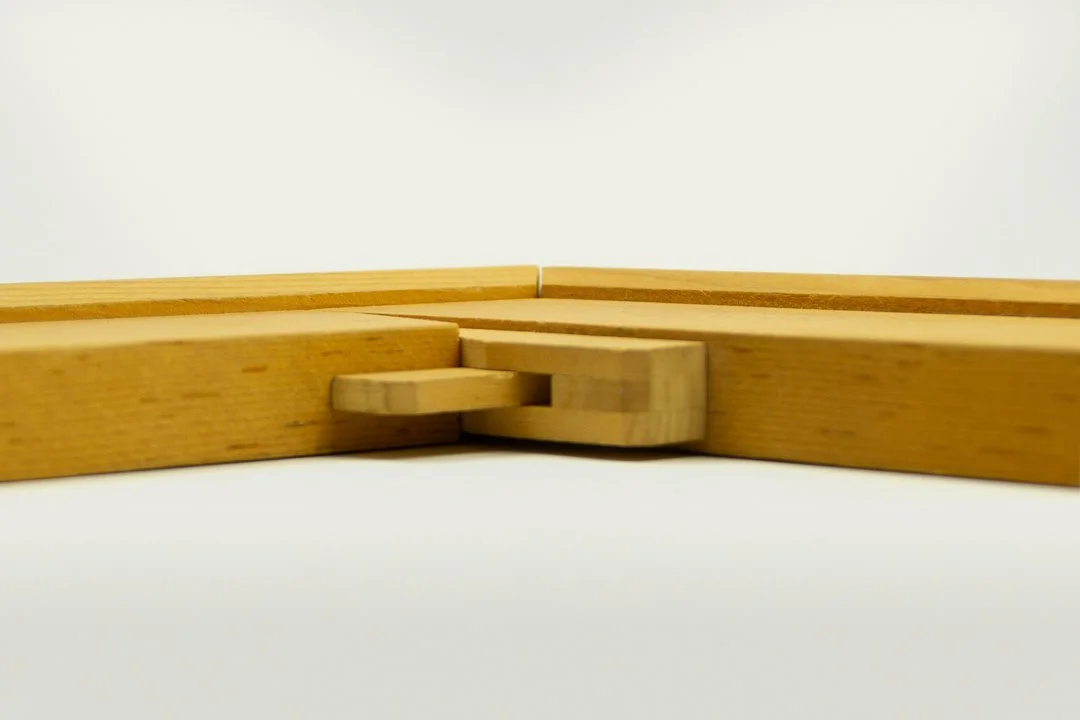

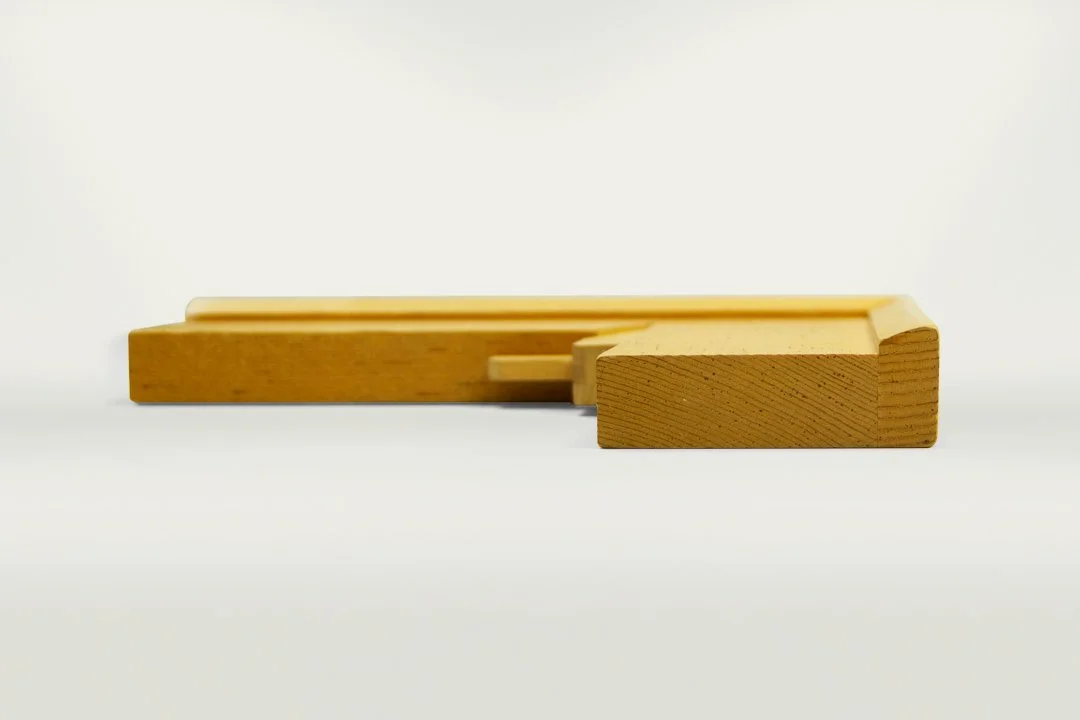

Stretcher Bar Profile
Features an L-shaped biscuit joint at the corners.
Previous
Next

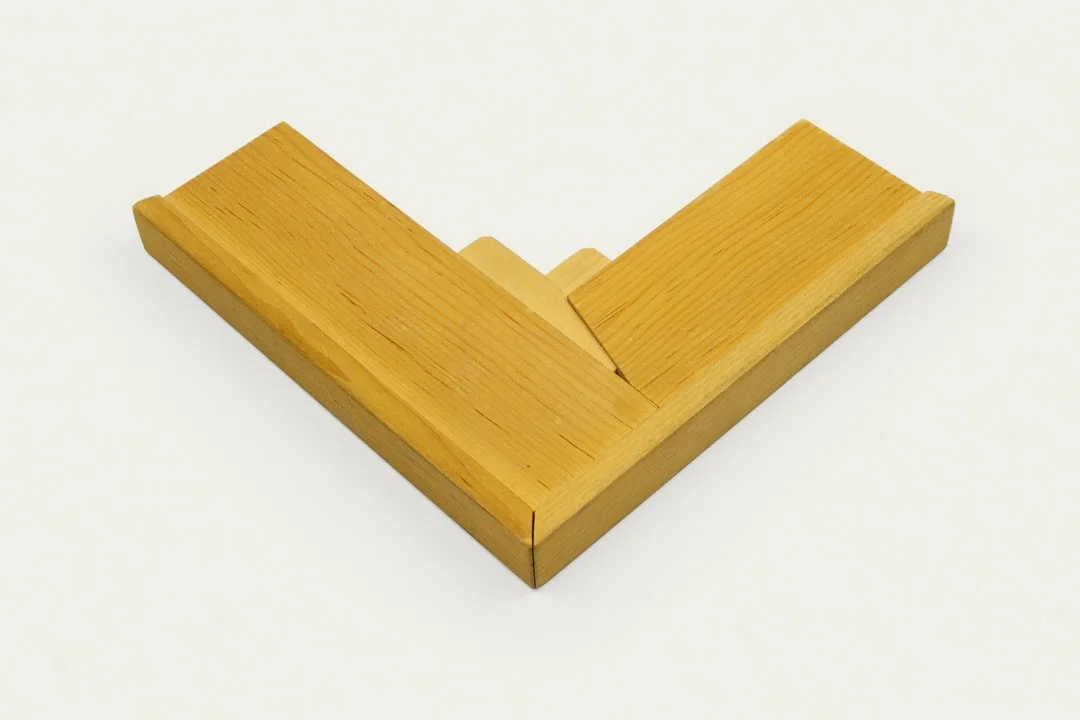

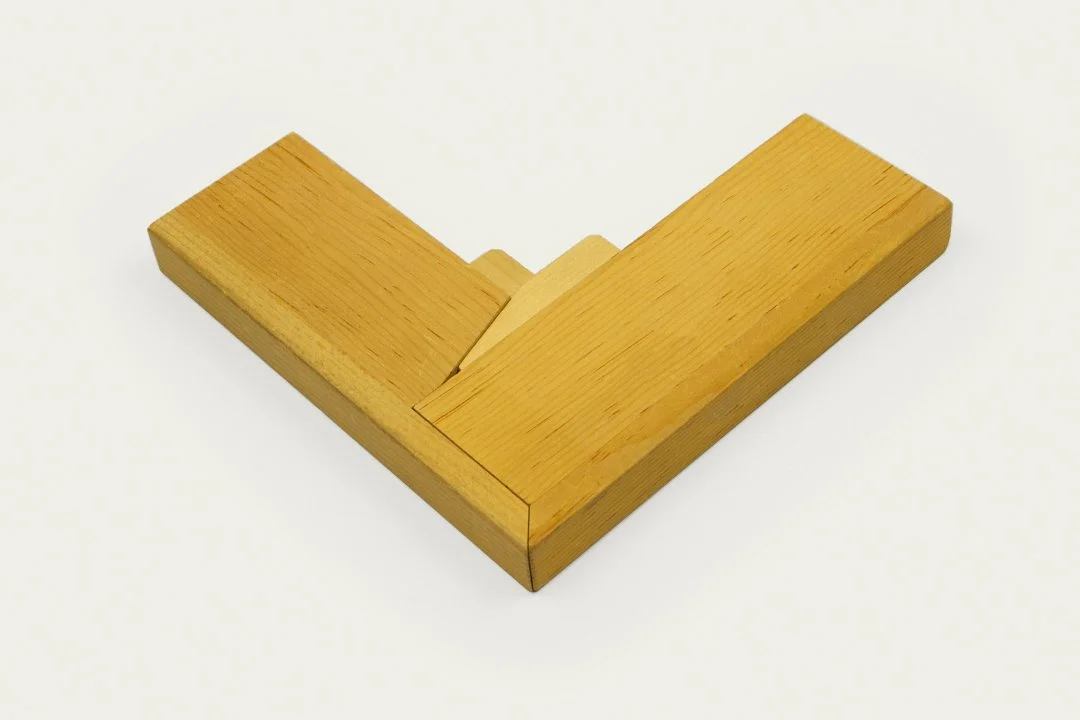

What is an Italian Style Stretcher?

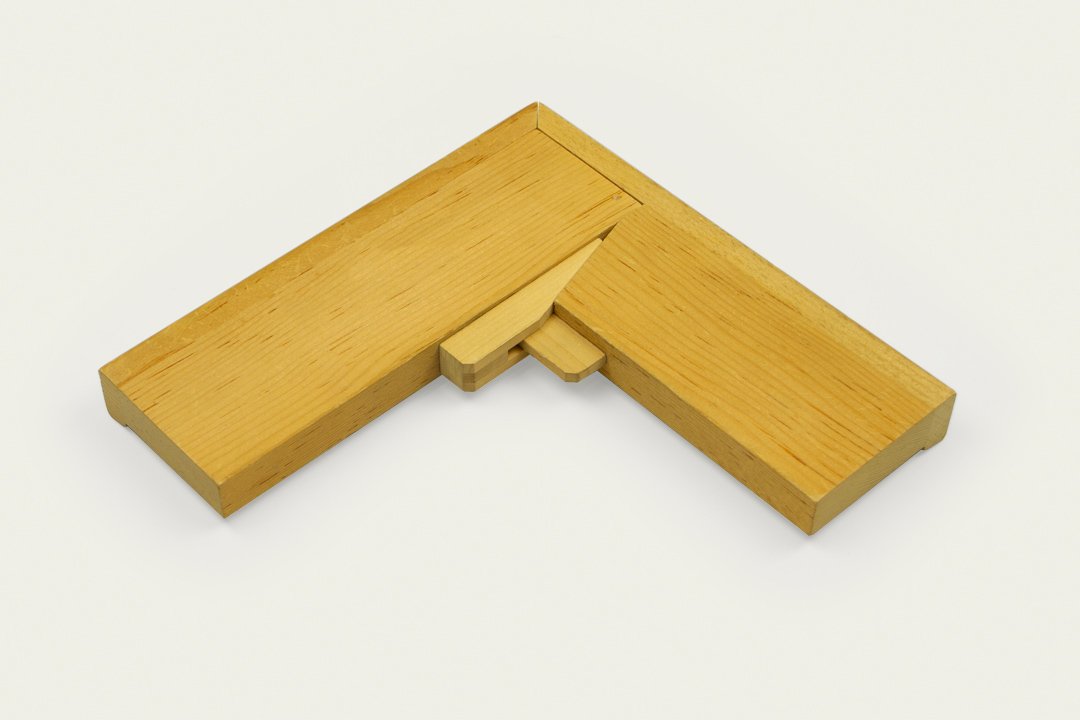

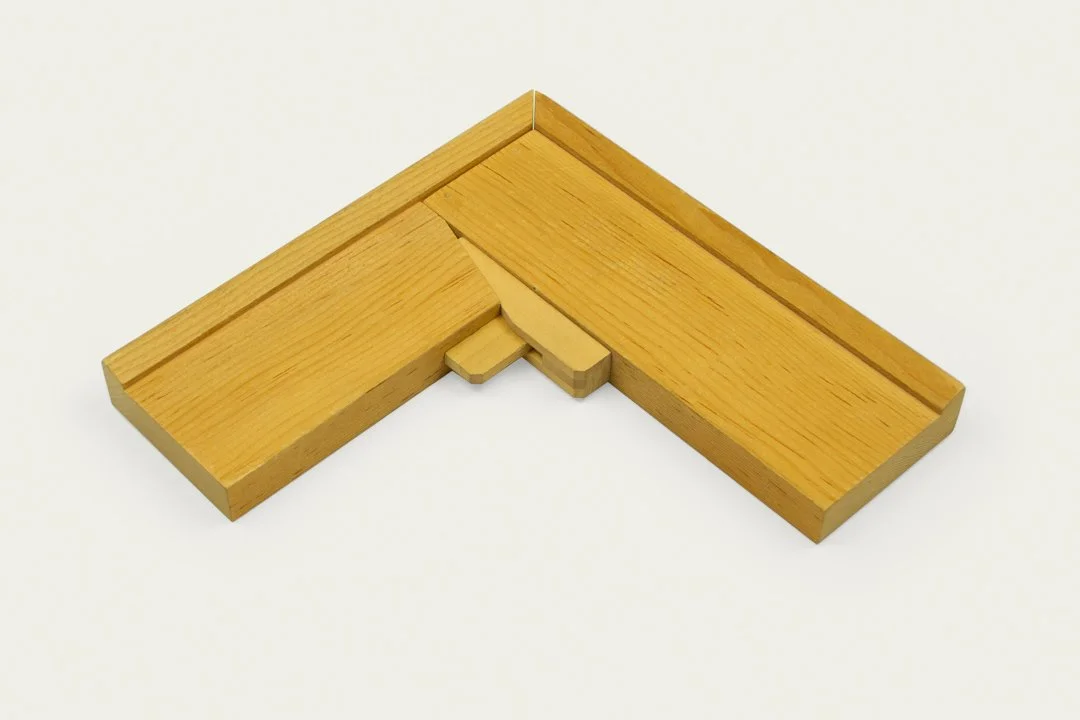

A specialty option typically for conservators, our Italian Style stretcher is a modification of a mid-19th-century design, featuring a simple closed mortise and tenon joint with interlocking forked key.
This centralized-joint setup provides superior grip for the keys and therefore minimal torque when keying out.
Sizing Chart Information
In addition to the standard sizing options below, we can also accommodate custom requests.
Please inquire.
| Code | Weight | Available Bar Width | Flat Back Thickness | Bevel Back Thickness |
|---|---|---|---|---|
|
S-IR |
Regular |
2 1/2'' |
3/4'' |
5/8'' |
|
Regular |
2 3/4'' |
3/4'' |
5/8'' |
|
|
S-IM |
Medium |
2 3/4'' |
1'' |
3/4'' |
|
Medium |
3'' |
1'' |
3/4'' |
|
|
S-IH |
Heavy |
2 3/4'' |
1 3/16'' |
7/8'' |
|
Heavy |
3 1/2'' |
1 3/16'' |
7/8'' |
|
|
S-IE |
Extra Heavy |
3'' |
1 3/8'' |
1 1/8'' |
|
Extra Heavy |
3 1/2'' |
1 3/8'' |
1 1/8'' |
|
|
S-IS |
Super Heavy |
4'' |
1 3/8'' |
1 1/8'' |
|
Super Heavy |
4 1/2'' |
1 3/8'' |
1 1/8'' |
